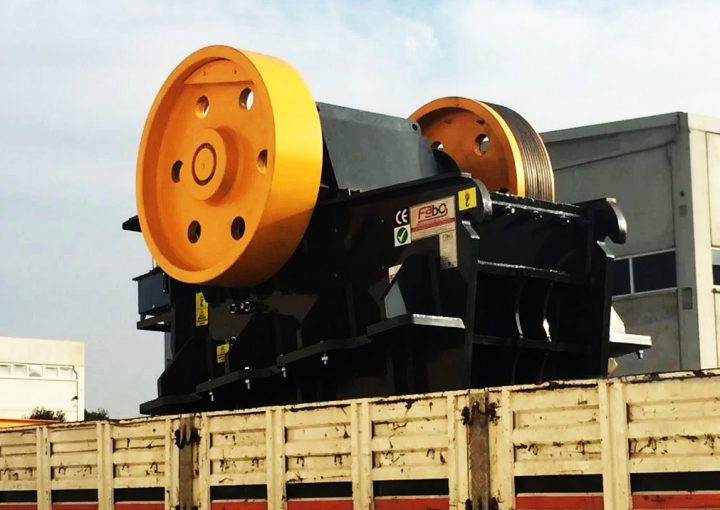

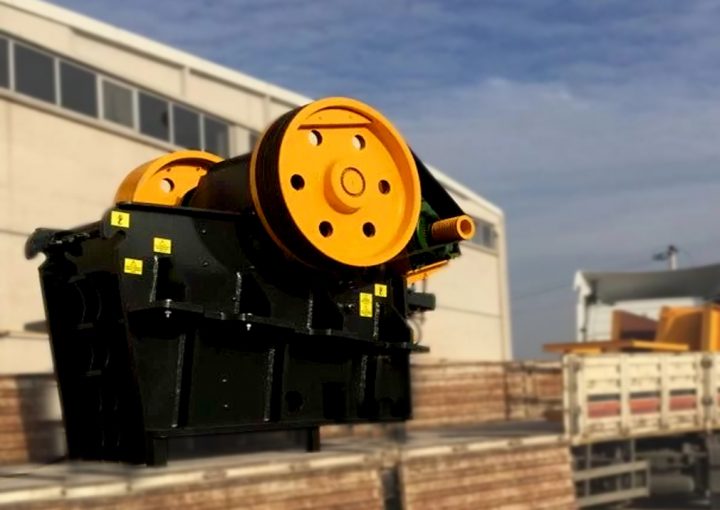

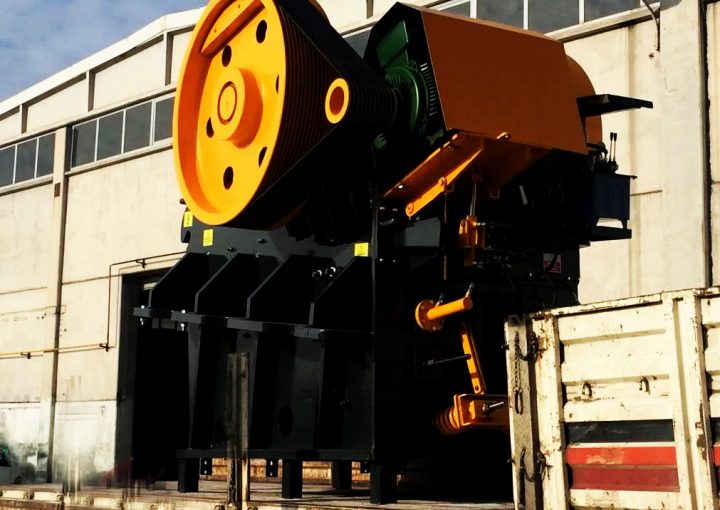

CLK-130 Jaw Crusher
Jaw crushers are generally used for basalt, granite, etc. It is used to break hard and abrasive materials with high silica content. They are crushers that make crushing by means of 2 Manganese alloy jaw plates, one is fixed and the other is mobile. With its very strong and robust jaw structure, it has been one of the most preferred crushers in the mining industry for many years.
VIDEO
The high performance, reliability, durability and user-friendly adjustment mechanisms of our FABO jaw crushers brought about by the high flywheel speeds, jaw grabbing angles, the special geometries of the pitmans with the safety plates and rear blocks provide unique operating advantages to their users.
Features
Heavy-duty base frame is submerged, arc-welded, then thermally stress relieved. Oversized, heavy-duty spherical, self-aligning roller bearings. Large diameter, drop-forged chrome-nickel steel pitman shaft. Large flywheels to ensure the inertia is maintained to crush even the hardest materials.
| INLET DIMENSIONS | 1400 x 1100 mm | MOTOR POWER | 200 kW |
| MAX FEEDING | 1000 mm | CLOSED SIZE SETTING | 120-280 |
| CAPACITY | 320-600 TPH | WEIGHT | 50950 kg |
GALLERY
