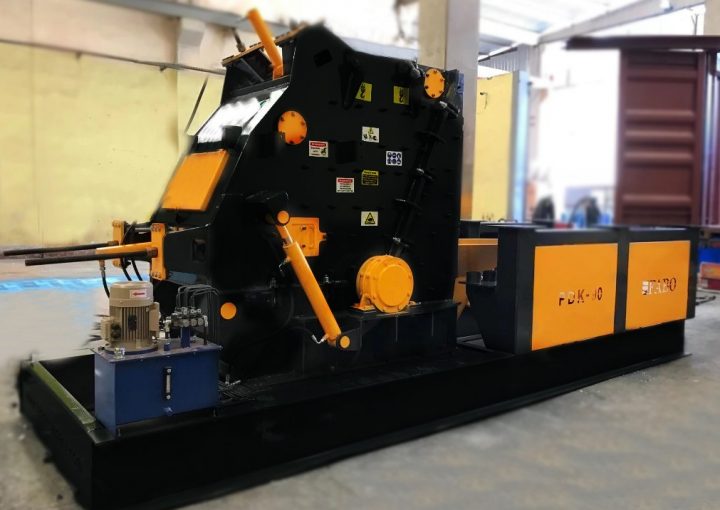

PDK-90 Primary Impact Crusher

Rotor is the key component in the crushing process and together with shaft and bearings forms the heart of the crusher, that’s why we have ensured that the rotor is robust and efficient to handle up to 1 m3 large lumps. Rotor is manufactured from solid-cast steel with heavy duty rotor discs, essential for delivering the high inertia required for optimum crusher performance. Solid forged steel shafts are precision machined for assembly. Rotor shaft is supported on grease lubricated, self aligning large spherical roller bearings with labyrinth type seals for extended life. The bearings have a pedestal mounted split pillow block housing for easy maintenance. The open rotor design additionally provides the ability to handle re-enforcing bars etc. in recycling applications

Designed to process large feed sizes and high capacity crushing, Fabo PDK impact crusher is suitable for primary processing of limestone materials or medium hard materials. It is very compact and it can achieve high performance and excellent cubicity of the crushed product.

PDK Primary Impact Crusher provide to break medium hardness and less abrasive materials at high rates of size reduction which controlled primary level. Process to break of rock which enter into Primary Impact Crusher; firstly stone hit to stone by impact of rotor pallets, then hitting the upper wing impact plates and the lower wing impact plates. Primary Impact Crusher has a body which is separated to two parts. Crusher maintenance is simple and also possible to change palette impact plate and lining after completely open the upper part with help of hydraulic cylinders.

MAX FEEDING500 mmSPEED750 rpm
CAPACITY100-150 TPHROTOR SIZEØ 1100 x 900mm
MOTOR POWER132 kWWEIGHT9980 kg
