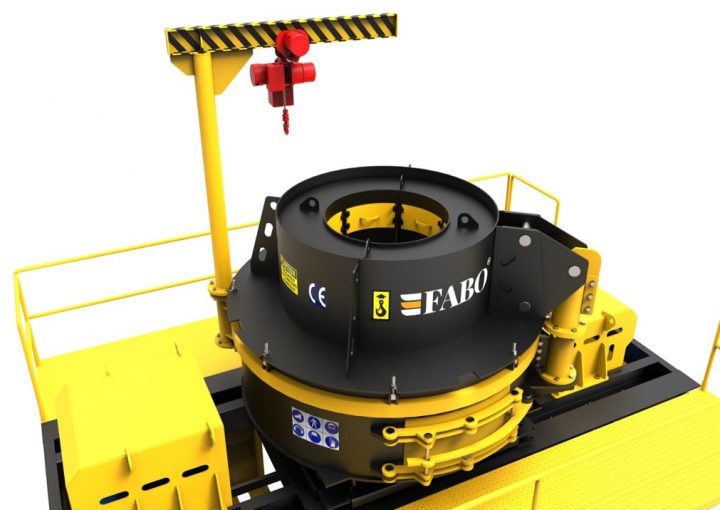

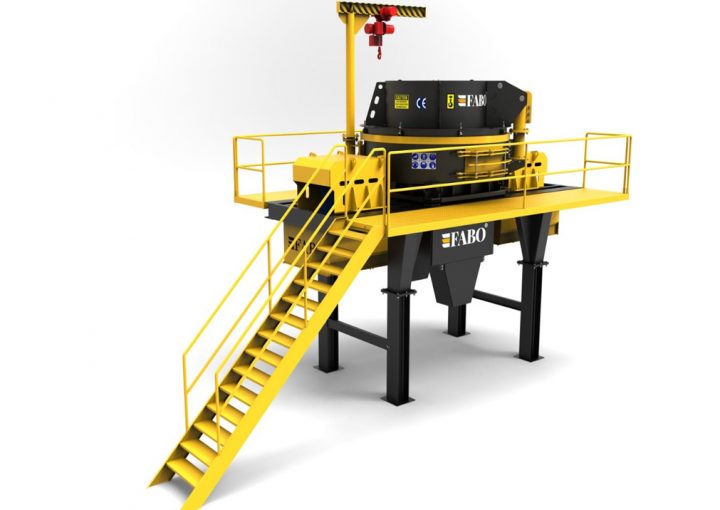

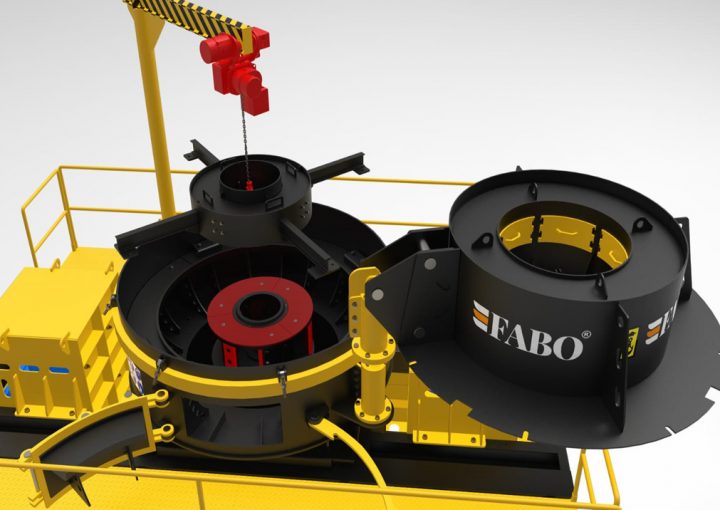

VSI-700-CR Vertical Shaft Impact Crusher

Vertical shaft impact crusher VSI-700, with an average stone crushing capacity of 40-140 tons per hour, is the type that provides the least production among vertical shaft crushers. Despite this, it is preferred by many companies with its features such as being able to be used easily even in difficult terrain conditions, working as silently as possible, not causing environmental pollution and enhancing high performance in a short time.

VIDEO

Basically, the working logic is as follows;

The feeding material is crushed by distorting the stone wall on the stator wall or the surrounding anvils.
With vertical shaft crushers, there is no need to use a screen. With special alloy rotor tips developed by our engineers, your work will never be interrupted and your maintenance costs will be reduced to a minimum.

VSI Vertical Shaft Impact Crusher have high ratio of sand and cubic. It produces 0.5mm sand and gravel by breaking all kinds of medium size hard material. Basically, the logic of work; feeding material is crushed by hitting to the wall or surrounding anvils which are on lining of stator that formed by the stones.

With Vertical Shaft Impact Crusher there is no need of using screen, it is open to single-stage process. Special alloyed the tips of the rotor which developed by engineers of Fabo never let you down and maintenance costs are reduced to minimum.

ROTOR SIZEØ 700 mmMOTOR POWER160-200 kW
MAX FREEDING SİZE30 mmSPEED50-70 m/s
CAPACITY40-140 T/HWEIGHT7500 kg
