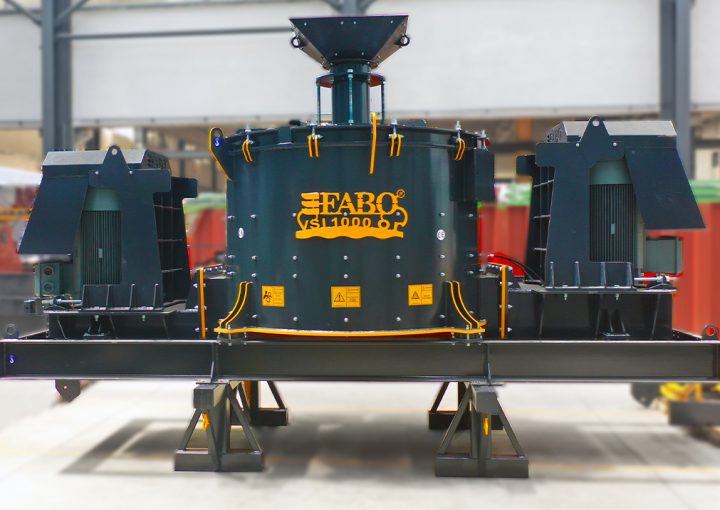

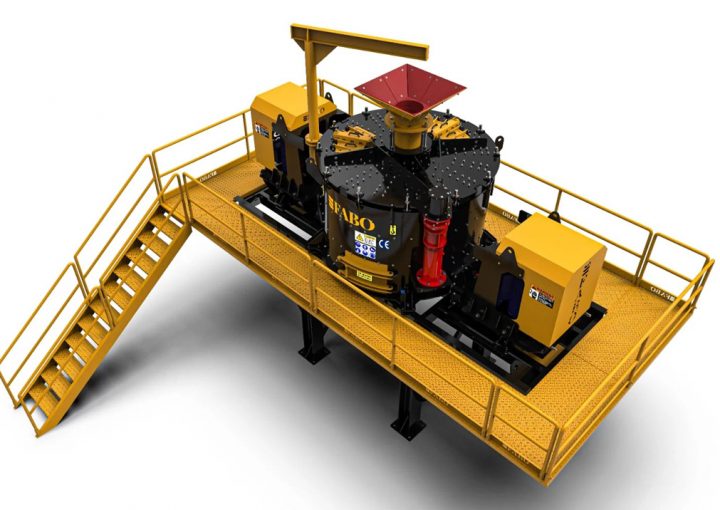

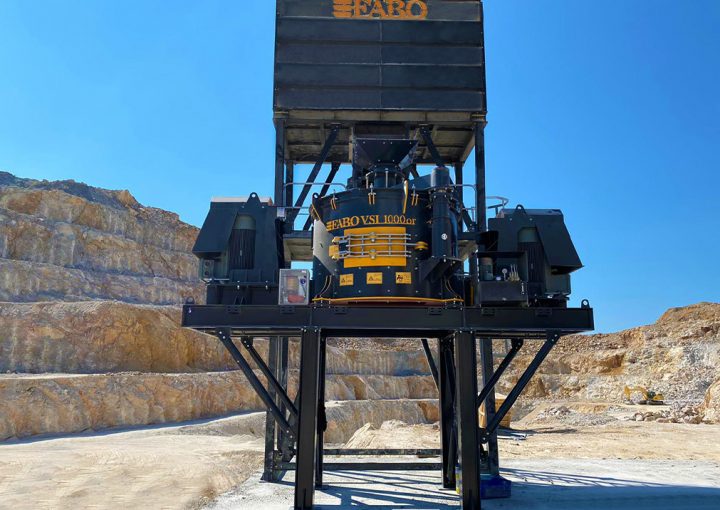

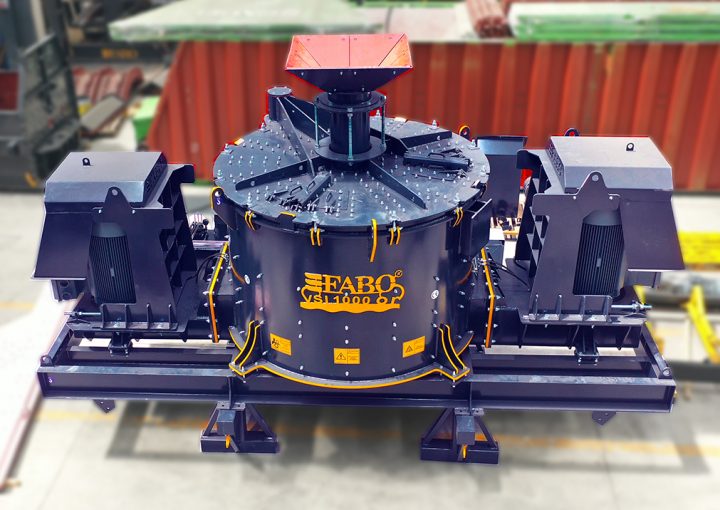

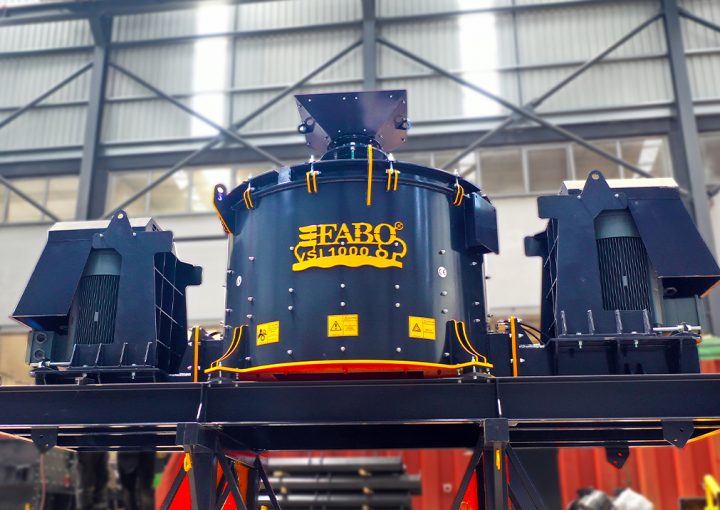

VSI-1000-OR Vertical Shaft Impact Crusher
Vertical shaft crusher VSI-900 has an average crushing capacity of 450 tons per hour. These construction machines, which can be used to break any medium-sized material in 0.5 mm size, have a wide working area. Vertical shaft crushers, which are one of the tertiary crushers, are effective in giving the most vertical acceleration in material delivery to the crushing chamber.
Basically, the working logic is as follows;

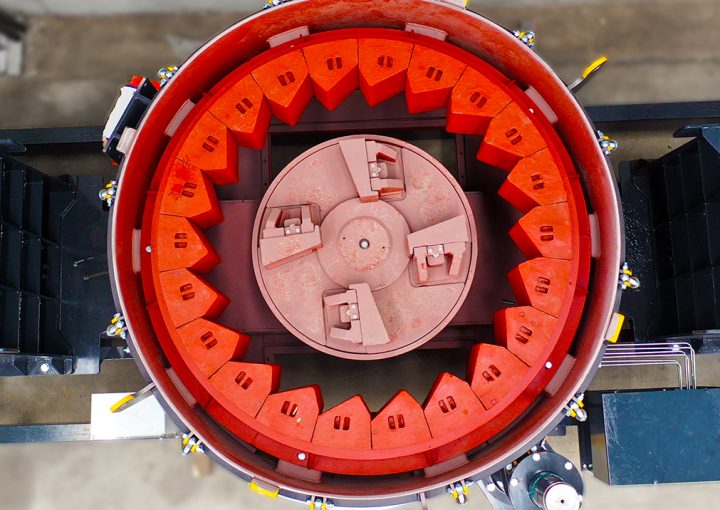

The feeding material is crushed by distorting the stone wall on the stator wall or the surrounding anvils.
With vertical shaft crushers, there is no need to use a screen. With special alloy rotor tips developed by our engineers, your work will never be interrupted and your maintenance costs will be reduced to a minimum.
VSI Vertical Shaft Impact Crusher have high ratio of sand and cubic. It produces 0.5mm sand and gravel by breaking all kinds of medium size hard material. Basically, the logic of work; feeding material is crushed by hitting to the wall or surrounding anvils which are on lining of stator that formed by the stones.
With Vertical Shaft Impact Crusher there is no need of using screen, it is open to single-stage process. Special alloyed the tips of the rotor which developed by engineers of Fabo never let you down and maintenance costs are reduced to minimum.
|ROTOR SIZE||Ø 1000 mm||CAPACITY||150-400 T/H|
|MAX FREEDING SİZE||100 mm||MOTOR POWER||2 x 200-250 kW|
|SPEED||50-70 m/s||WEIGHT||19000 kg|
